Our Products

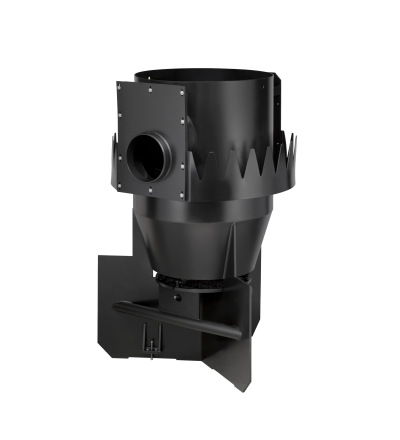

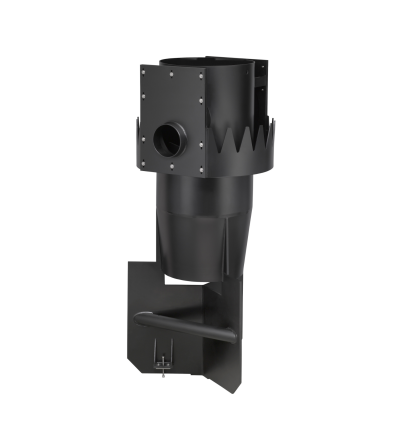

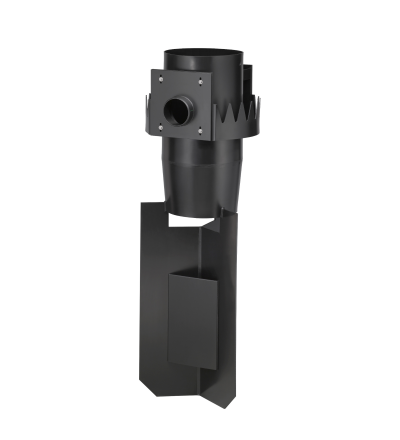

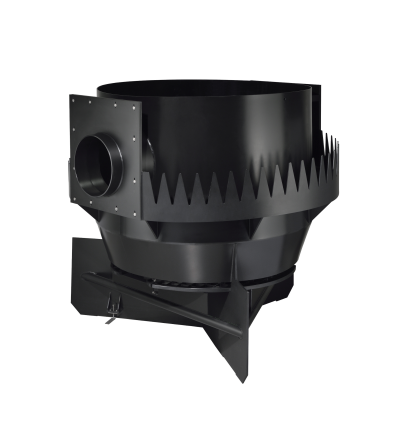

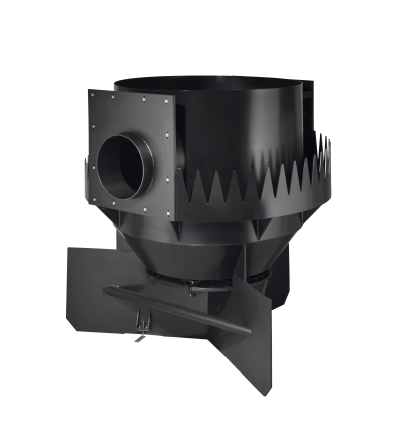

ecoStorm Hydroshark

The Hydroshark sedimentation plant reliably removes filterable solids (TSS) from the rain runoff. In this way, it protects water bodies and infiltration systems.

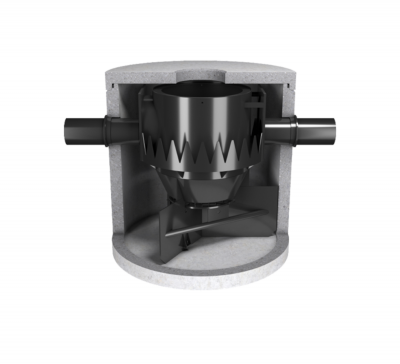

For installation in a concrete shaft.

• cleans by sedimentation with hydrodynamical separators, retention of light substances such as oils
• underground system, small excavation area
• no height offset between inlet and outlet
• easy control and maintenance
• drainable sediment container

Price on request

• ecoStorm Hydroshark 750



  Technical Data

  for installation in a concrete shaft DN800

  Drainage area based on
  1. DWA M 153 D 25 (D = 0,35):1.000 m²
  2. DWA M 153 D 24 (D = 0,50):1.500 m²
  3. Trennerlass NRW:1.000 m²

  max. hydraulic load:
  DN150: 18,8 l/s

  Price on request

• ecoStorm Hydroshark 1000



  Technical Data

  für den Einbau in den Betonschacht DN1000

  Drainage area based on
  1. DWA M 153 D 25 (D = 0,35):2.000 m²
  2. DWA M 153 D 24 (D = 0,50):2.500 m²
  3. Trennerlass NRW:2.000 m²

  max. hydraulic load:
  DN200: 40,4 l/s; DN250: 51,3 l/s

  Price on request

• ecoStorm Hydroshark 1500



  Technical Data

  for installation in a concrete shaft DN1500

  Drainage area based on
  1. DWA M 153 D 25 (D = 0,35): 4.000 m²
  2. DWA M 153 D 24 (D = 0,50): 5.000 m²
  3. Trennerlass NRW: 4.000 m²

  max. hydraulic load:
  DN300: 98 l/s

  Price on request

• ecoStorm Hydroshark 2000



  Technical Data

  for installation in a concrete shaft DN2000

  Drainage area based on
  1. DWA M 153 D 25 (D = 0,35):  8.000 m²
  2. DWA M 153 D 24 (D = 0,50):10.000 m²
  3. Trennerlass NRW:  8.000 m²

  max. hydraulic load:
  DN350: 147 l/s; DN400: 220 l/s

  Price on request

• ecoStorm Hydroshark 2500



  Technical Data

  for installation in a concrete shaft DN2500

  Drainage area based on
  1. DWA M 153 D 25 (D = 0,35):12.000 m²
  2. DWA M 153 D 24 (D = 0,50):15.000 m²
  3. Trennerlass NRW:12.000 m²

  max. hydraulic load:
  DN400: 220 l/s; DN500: 378 l/s

  Price on request

• ecoStorm Hydroshark 3000



  Technical Data

  for installation in a concrete shaft DN3000

  Drainage area based on
  1. DWA M 153 D 25 (D = 0,35):18.000 m²
  2. DWA M 153 D 24 (D = 0,50):22.000 m²
  3. Trennerlass NRW:18.000 m²

  max. hydraulic load:
  DN500: 378 l/s; DN600: 674 l/s

  Price on request

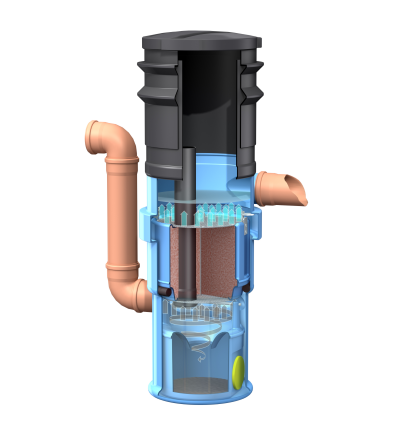

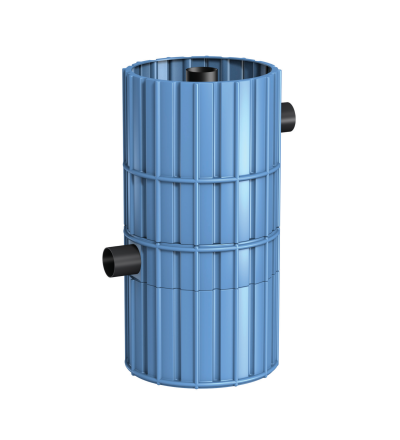

ecoStorm plus 400

ecoStorm plus is an affordable stormwater filtration system designed to remove sediments, heavy metals and nutrients.

Surface water runoff contains significant concentrations of heavy metals and other soluble pollutants. Structural Stormwater treatment systems are effective in removing sediments, but do not remove solubles such as heavy metals and nutrients (phosphates and nitrates).

Applications:

• Treatment of run-off from metal roofs.
• Surface water runoff from streets, highways and parking lots.
• Upstream to a rainwater harvesting tank.

Price on request

• ecoStorm plus 400 roof



  Technical Data

  for roof areas

  Connectable area up to 175 m²
  Installation directly in the ground

  Price on request

• ecoStorm plus 400 traffic



  Technical Data

  for traffic areas

  Connectable area up to 130 m²
  Installation directly in the ground

  Price on request

• ecoStorm plus 400 heavy traffic



  Technical Data

  for heavy traffic areas

  Connectable area up to 100 m²
  Installation directly in the ground

  Price on request

• ecoStorm plus 400 metal



  Technical Data

  for metal rooftops

  Connectable area up to 130 m²
  Installation directly in the ground

  Price on request

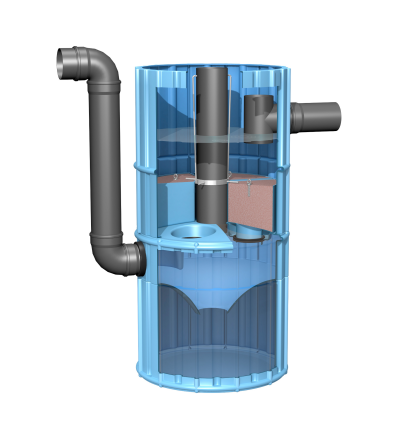

ecoStorm plus 1000

ecoStorm plus is an affordable stormwater filtration system designed to remove sediments, heavy metals and nutrients.

Surface water runoff contains significant concentrations of heavy metals and other soluble pollutants. Structural Stormwater treatment systems are effective in removing sediments, but do not remove solubles such as heavy metals and nutrients (phosphates and nitrates).

Applications:

• Treatment of run-off from metal roofs.
• Surface water runoff from streets, highways and parking lots.
• Upstream to a rainwater harvesting tank.

Price on request

• ecoStorm plus 1000 roof



  Technical Data

  for roof areas

  Connectable area up to 1.000 m²
  Installation in shaft structures up to D = 1.0 m

  Price on request

• ecoStorm plus 1000 traffic



  Technical Data

  for roof areas

  Connectable area up to 750 m²
  Installation in shaft structures up to D = 1.0 m

  Price on request

• ecoStorm plus 1000 heavy traffic



  Technical Data

  for roof areas

  Connectable area up to 500 m²
  Installation in shaft structures up to D = 1.0 m
  Admission: DIBt Z-84.2-4

  Price on request

• ecoStorm plus 1000 metal



  Technical Data

  for metal roofs

  Connectable area up to 650 m²
  Installation in shaft structures up to D = 1.0 m

  Price on request

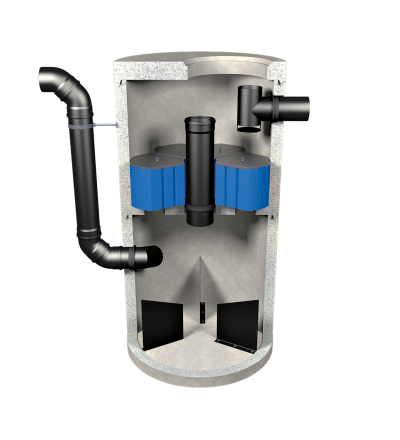

ecoStorm plus 1500

ecoStorm plus is an affordable stormwater filtration system designed to remove sediments, heavy metals and nutrients.

Surface water runoff contains significant concentrations of heavy metals and other soluble pollutants. Structural Stormwater treatment systems are effective in removing sediments, but do not remove solubles such as heavy metals and nutrients (phosphates and nitrates).

Applications:

• Treatment of run-off from metal roofs.
• Surface water runoff from streets, highways and parking lots.
• Upstream to a rainwater harvesting tank.

Price on request

• ecoStorm plus 1500 heavy traffic



  Technical Data

  for metal roofs

  Connectable area up to 1.600 m²
  Installation in shaft structures up to D = 1.5 m

  Price on request

• ecoStorm plus 1500 metal



  Technical Data

  for metal roofs

  Connectable area up to 1.300 m²
  Installation in shaft structures up to D = 1.5 m

  Price on request
